Sandwich housing for Sun Hydraulics cartridge valves, supplied without valve. Cavity T-11A, stack height 50,0 mm, NG10. 50 mm ISO 05 SANDWICH DUAL T-11A ON A + B CROSS PILOTED.
U5B is a sandwich housing for Sun Hydraulics cartridge valves, supplied without a cartridge, for a cartridge valve with cavity T-11A. Stack height 50,0 mm, size NG10. The housing is sold separately – for fitting your own cartridge, replacing a housing in an existing stack or building a function that is not available as a complete manifold.
Sun’s designation on the drawing: 50 mm ISO 05 SANDWICH DUAL T-11A ON A + B CROSS PILOTED.
Versions in the Hydnet range: U5B 2xT-11A (part no. 235-2171), U5B/S 2xT-11A (part no. 235-2254). Suffix: /S = steel. Contact us if you are unsure which version you need.
The same housing is used in the following complete manifolds (housing + valve):

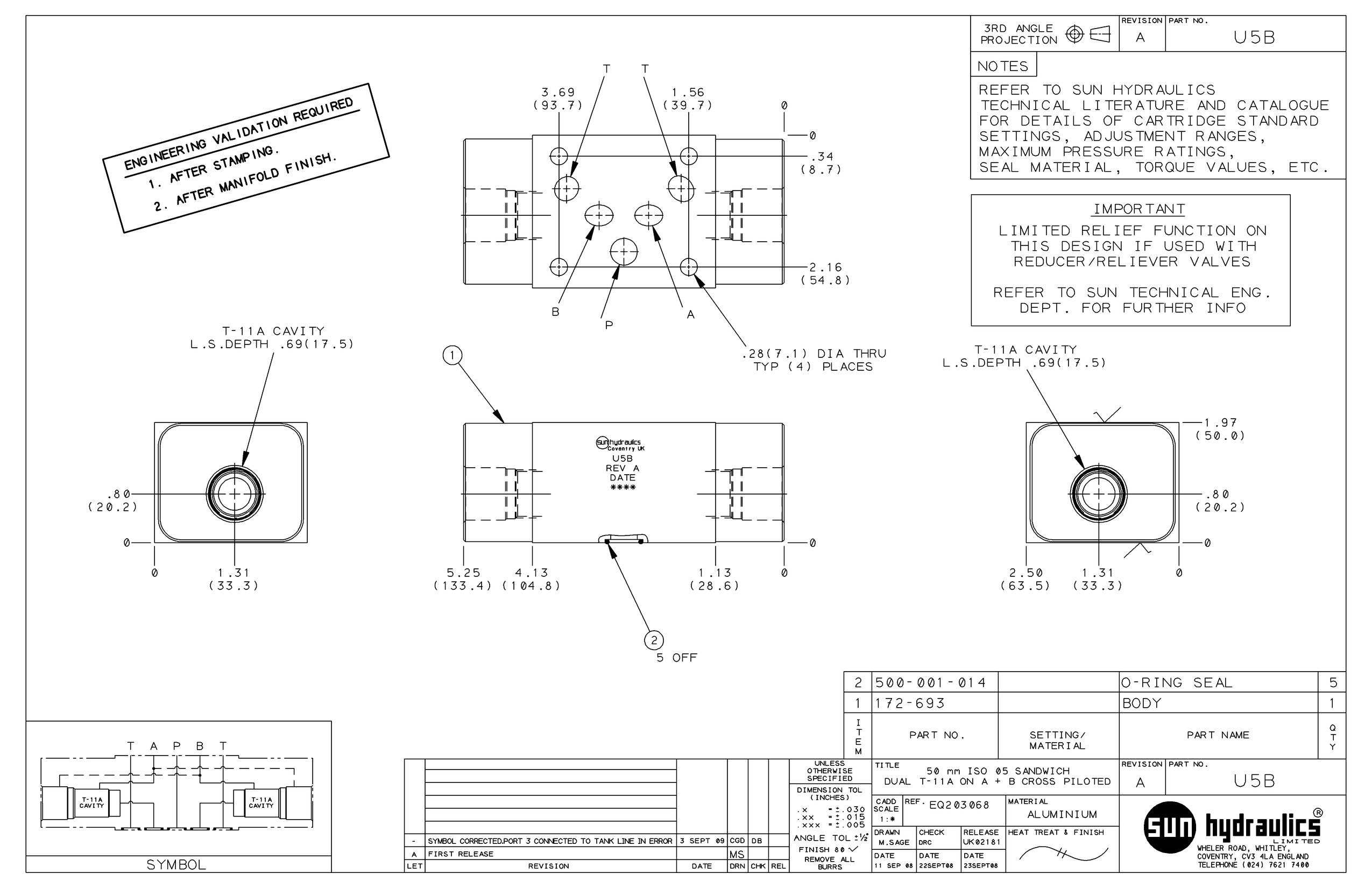

The image shows the housing symbol with ports and cavity. The complete Sun drawing with port layout and dimensions is available as the second image and as a datasheet, and a STEP file for CAD can be downloaded.
| Cavity | T-11A |
|---|---|
| Height of Manifold |
