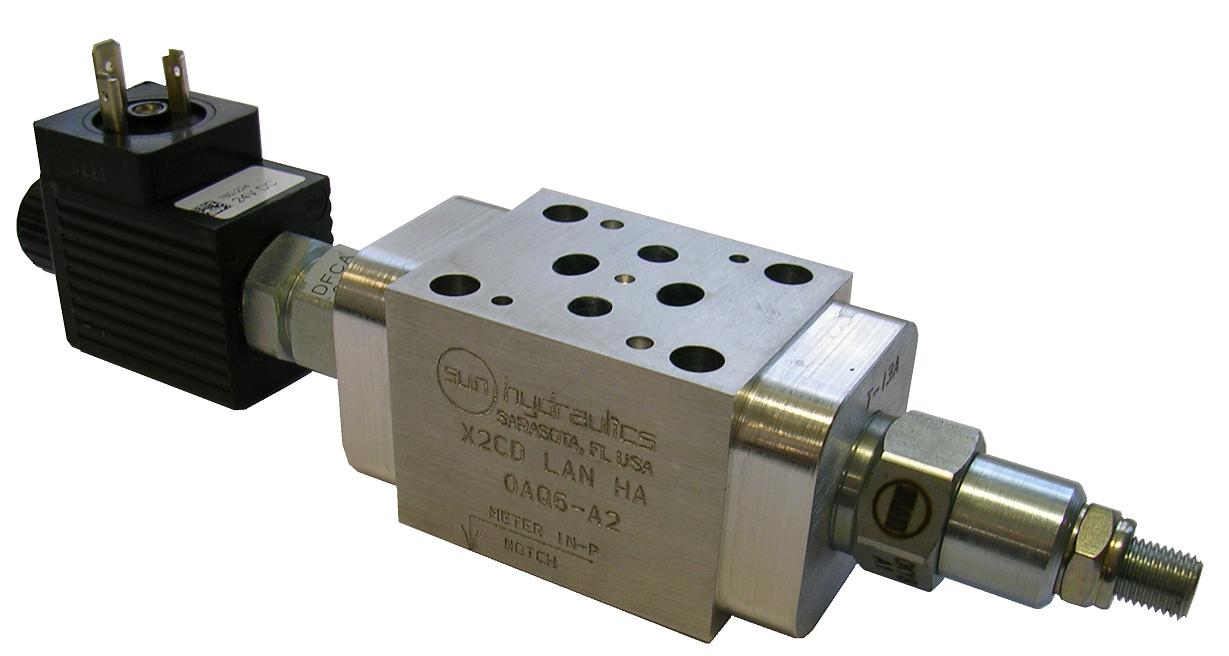

2-speed manifolds

2-speed manifolds

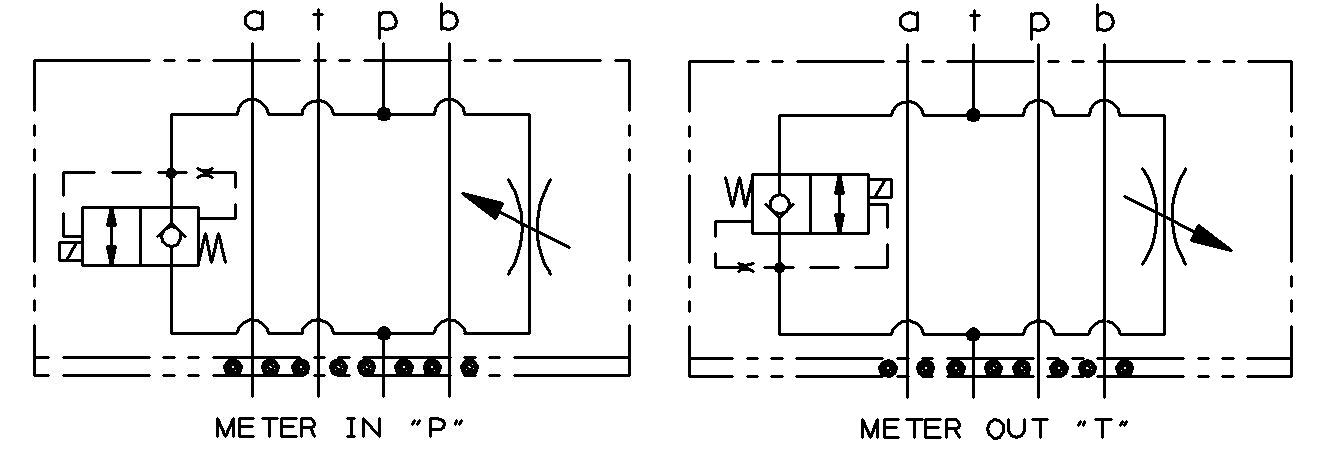

2-speed manifold

Sandwich with needle valve, turnable.

Model
Port Size
Nominal Capacity
X2CN-L**-**
ISO 03 in P / out of T
0-0,19"/ 15gpm (0-4,8mm / 60 lpm)
PDF

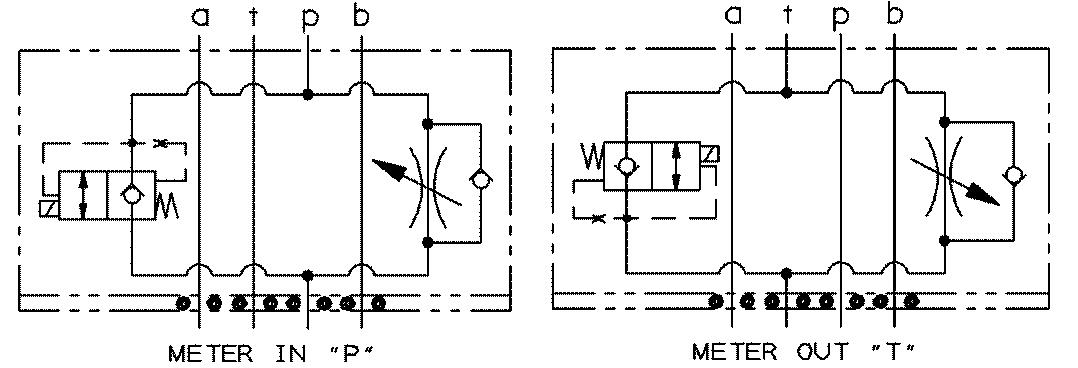

2-speed manifold

Sandwich with needle/check valve, turnable.

Model
Port Size
Nominal Capacity
X2CR-L**-**
ISO 03 in P / out of T
0-0,19"/ 15gpm (0-4,8mm / 60 lpm)
PDF

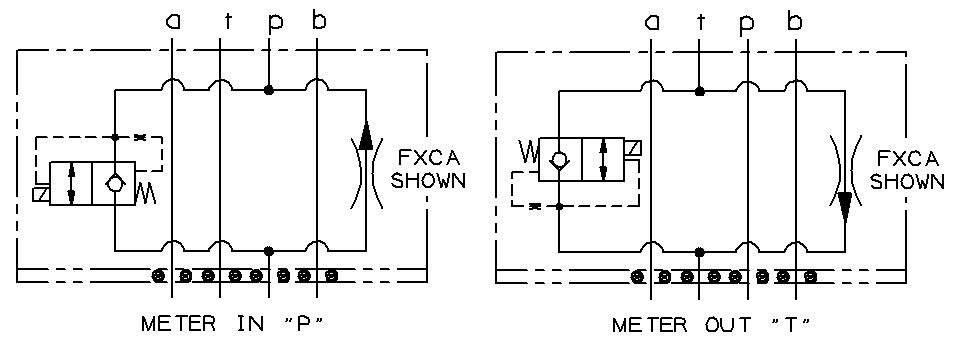

2-speed manifold

Sandwich with fixed pressure compensated flow control valve, turnable.

Model
Port Size
Nominal Capacity
X2CX-L**-**
ISO 03 in P / out of T
0,1-6 gpm/15gpm (0,4-25 lpm / 60 lpm)
PDF

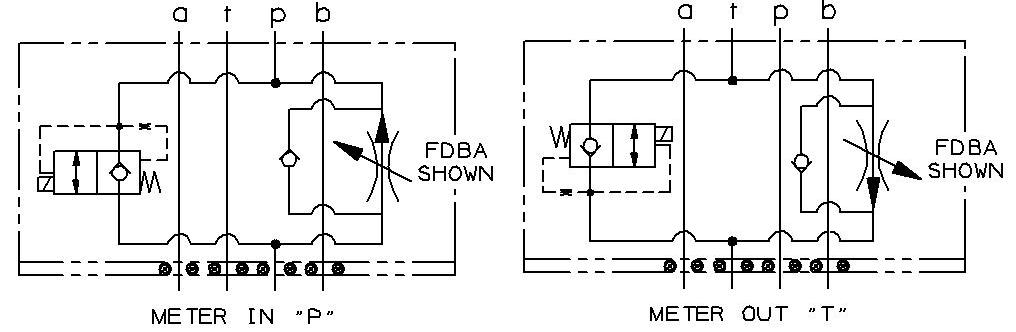

2-speed manifold

Sandwich with pressure compensated flow control valve, turnable.

Model
Port Size
Nominal Capacity
X2CD-L**-**
ISO 03 in P / out of T
0,1-6 gpm/15gpm (0,4-25 lpm / 60 lpm)
PDF

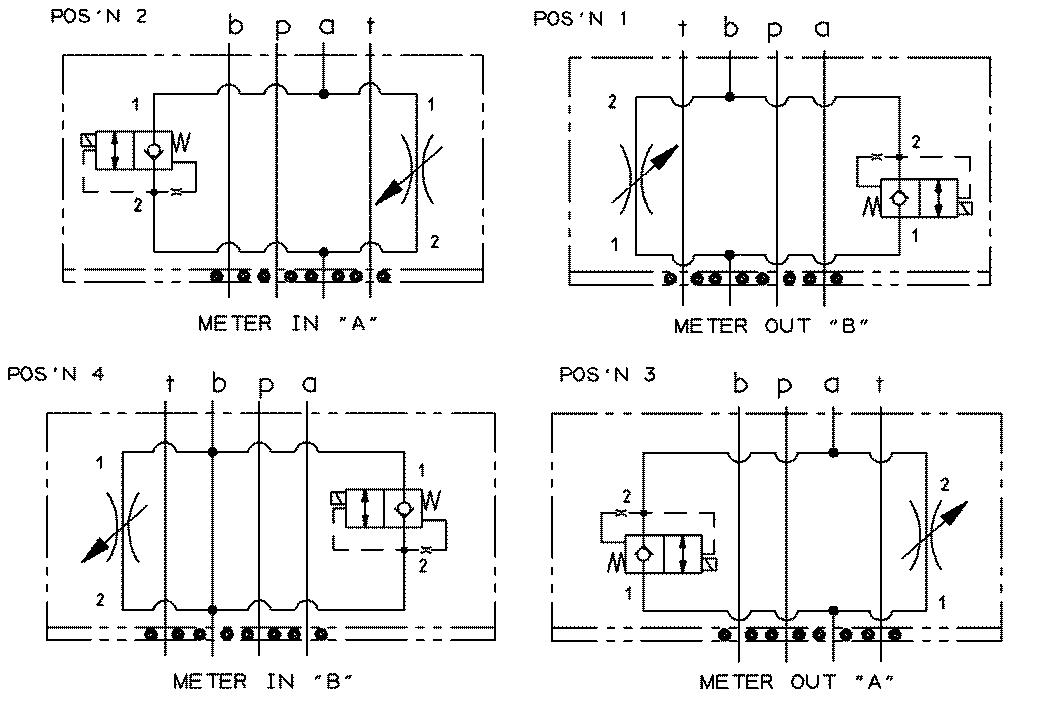

2-speed manifold

Sandwich with needle valve, turnable.

Model
Port Size
Nominal Capacity
X4CN-L**-**
ISO 03 meter in/out A or B
0-0,19"/ 15gpm (0-4,8mm / 60 lpm)
PDF

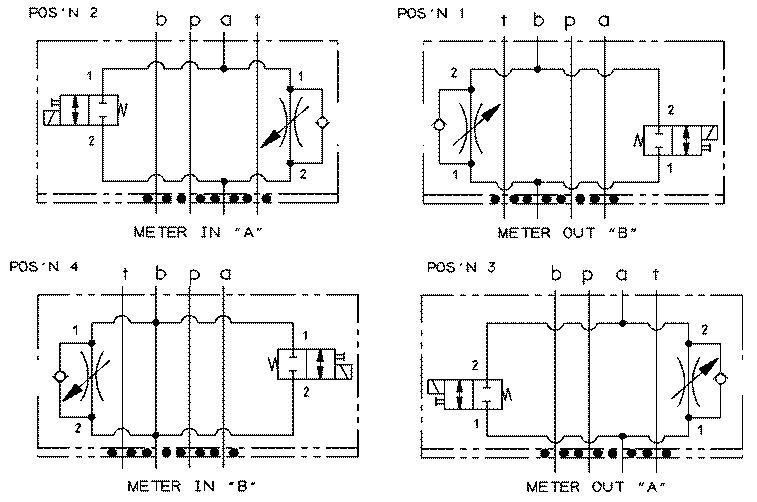

2-speed manifold

Sandwich with needle/check valve, turnable.

Model
Port Size
Nominal Capacity
X4CR-L**-**
ISO 03 meter in/out A or B
0-0,19"/ 15gpm (0-4,8mm / 45 lpm)
PDF

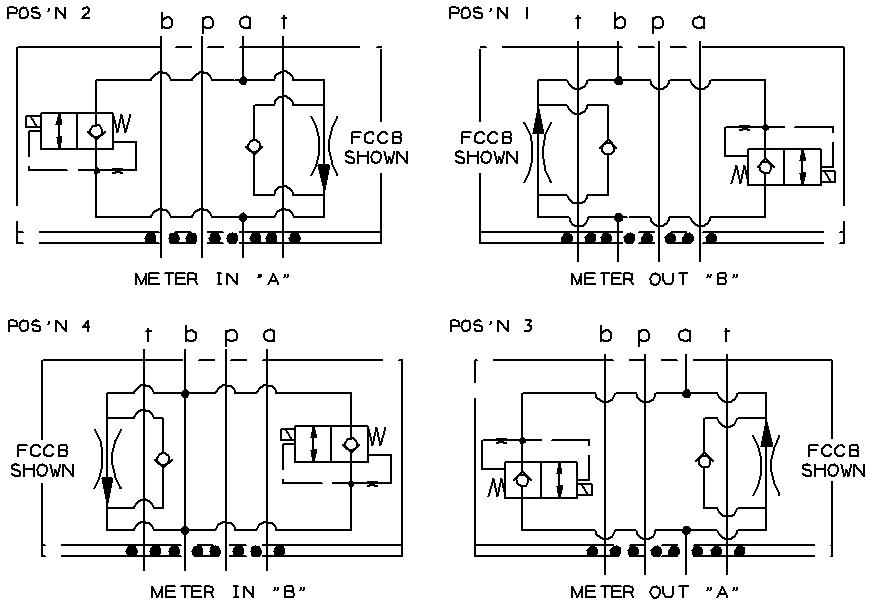

2-speed manifold 5

Sandwich with fixed pressure compensated flow control valve, turnable.

Model
Port Size
Nominal Capacity
X4CC-L**-**
ISO 03 meter in/out A or B
0,1-6 gpm/15gpm (0,4-25 lpm / 60 lpm)
PDF

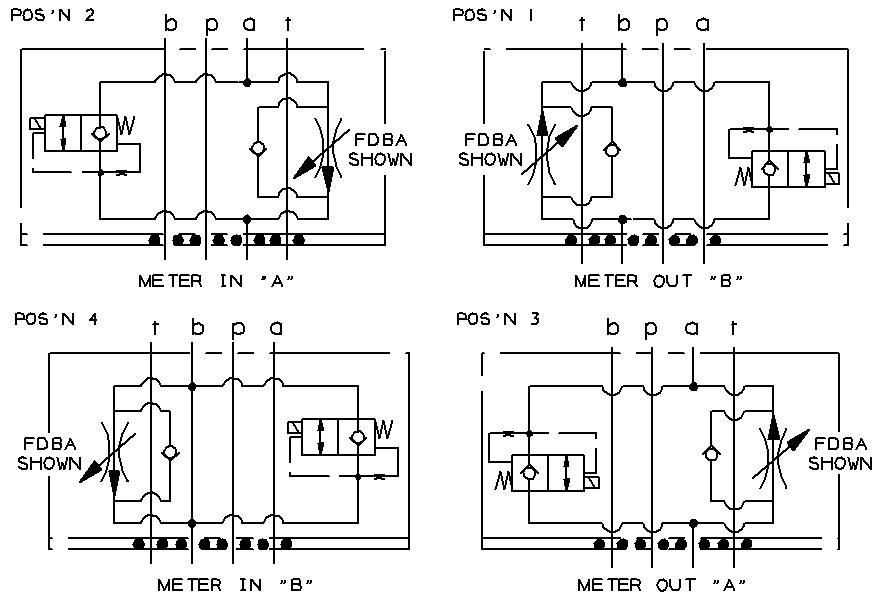

2-speed manifold

Sandwich with pressure compensated flow control valve, turnable.

Model
Port Size
Nominal Capacity
X4CD-L**-**
ISO 03 meter in/out A or B
0,1-6 gpm/15gpm (0,4-25 lpm / 60 lpm)
PDF

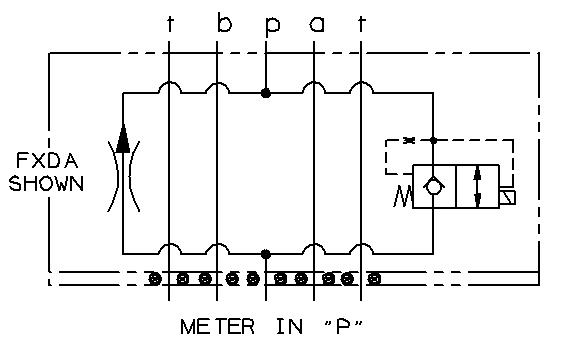

2-speed manifold

Sandwich with fixed pressure compensated flow control valve.

Model
Port Size
Nominal Capacity
X2DX-L**-**
ISO 05 in P
0,1-12 gpm/gpm (0,4-45 lpm / 120 lpm)
PDF

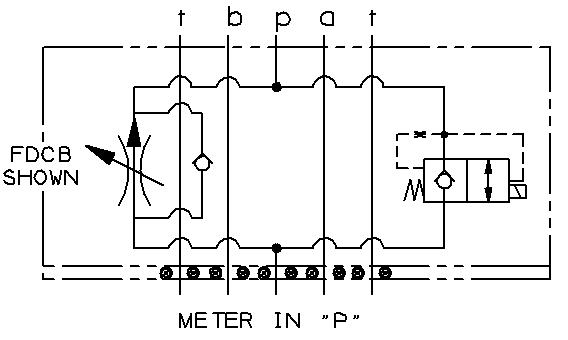

2-speed manifold

Sandwich with pressure compensated flow control valve.

Model
Port Size
Nominal Capacity
X2DD-L**-**
ISO 05 in P
0,1-12 gpm/gpm (0,4-45 lpm / 120 lpm)
PDF

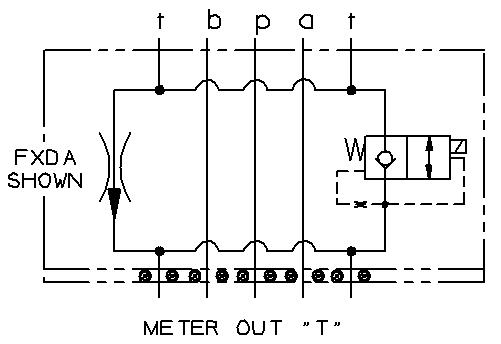

2-speed manifold 13

Sandwich with fixed pressure compensated flow control valve.

Model
Port Size
Nominal Capacity
X3DX-L**-**
ISO 05 out of T
0,1-12 gpm/gpm (0,4-45 lpm / 120 lpm)
PDF

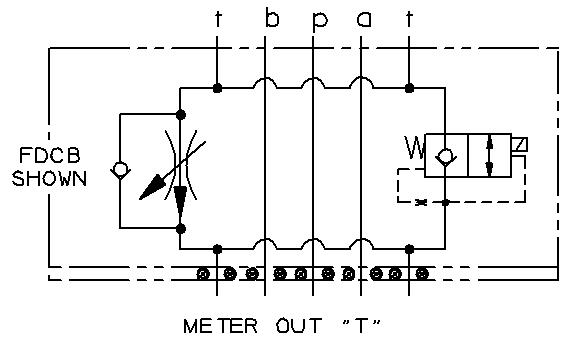

2-speed manifold 14

Sandwich with pressure compensated flow control valve.

Model
Port Size
Nominal Capacity
X3DD-L**-**
ISO 05 out of T
0,1-12 gpm/gpm (0,4-45 lpm / 120 lpm)
PDF

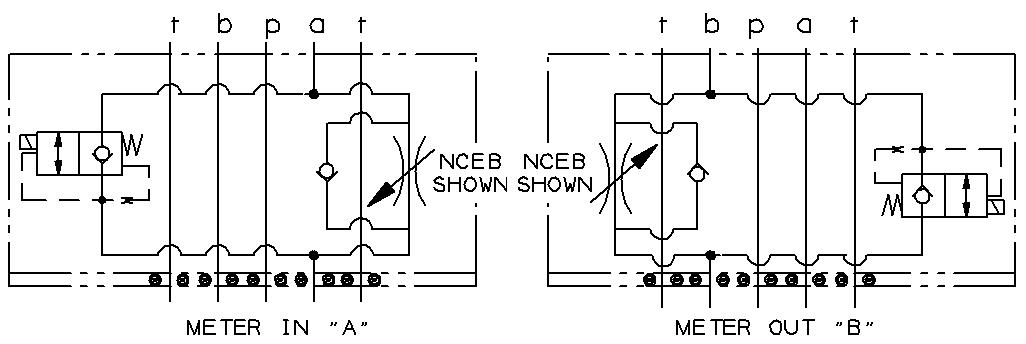

2-speed manifold 15

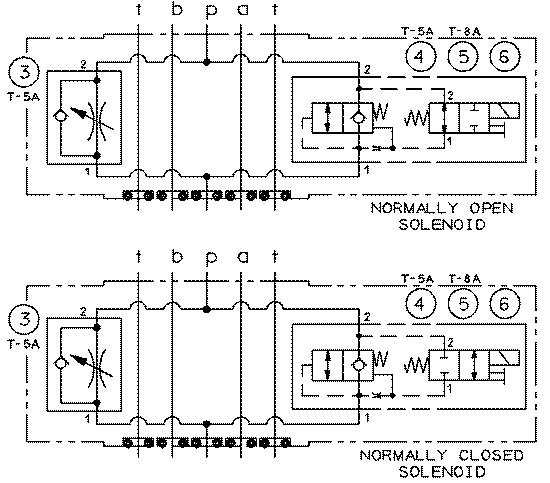

Sandwich with needle/check valve, turnable.

Model
Port Size
Nominal Capacity
X4DR-L**-**
ISO 05 meter in A/meter out B
0-0,25"/ 30gpm (0-6,3mm / 120 lpm)
PDF

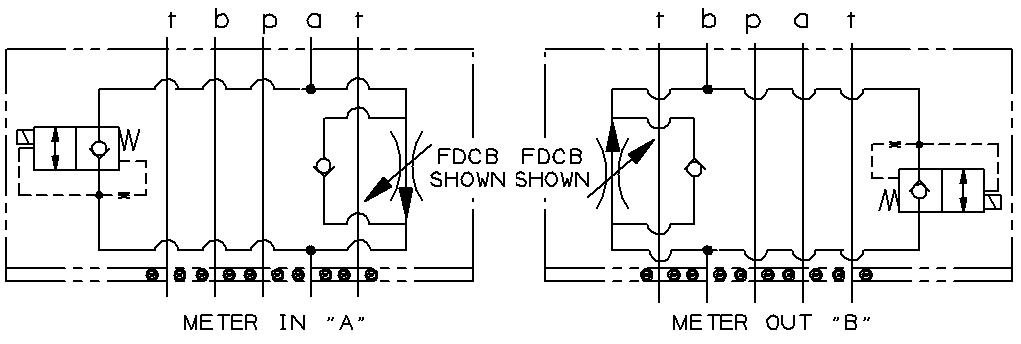

2-speed manifold 16

Sandwich with pressure compensated flow control valve, turnable.

Model
Port Size
Nominal Capacity
X4DD-L**-**
ISO 05 meter in A/meter out B
0,1-12gpm/ 30gpm (0,4-45lpm / 120 lpm)
PDF

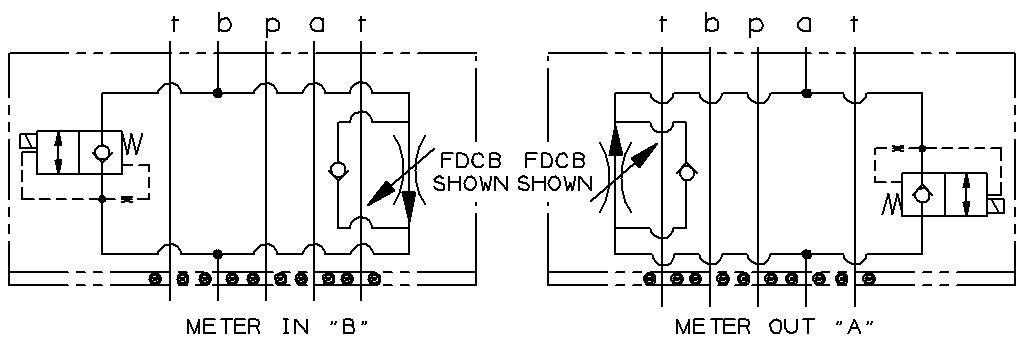

2-speed manifold 17

Sandwich with pressure compensated flow control valve, turnable.

Model
Port Size
Nominal Capacity
X6DD-L**-**
ISO 05 meter in B/meter out A
0,1-12gpm/ 30gpm (0,4-45lpm / 120 lpm)
PDF

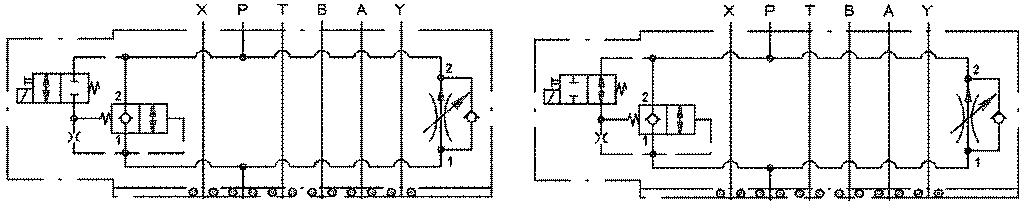

2-speed manifold 18

Sandwich with pressure compensated flow control valve.

Model
Port Size
Nominal Capacity
X2FD-L**-**
ISO 07 in P
0,2-25gpm/ 60gpm (0,8-95lpm / 240 lpm)
PDF

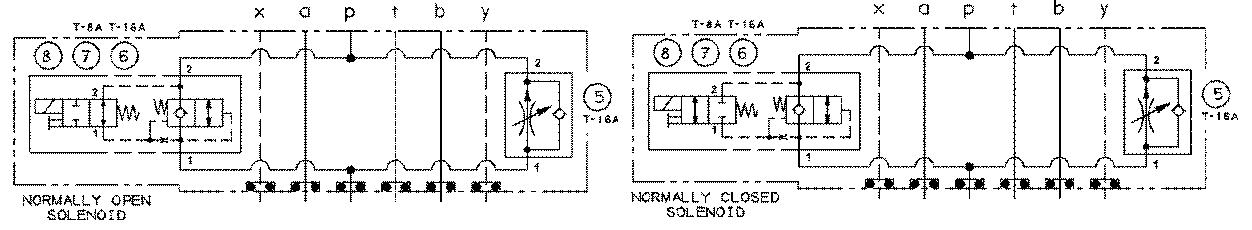

2-speed manifold 19

Sandwich with pressure compensated flow control valve.

Model
Port Size
Nominal Capacity
X2HD-L**-**
ISO08
0,2-25gpm/ 60gpm (0,8-95lpm / 240 lpm)
PDF
